Question 24

From Biology HL Paper 1 (May 2024, TZ2)

Grade your answerAnswer this question in practice mode and submit it for feedback.Practice under timed constraintsOpen the paper flow with timed full-exam navigation.
View source PDF page 17

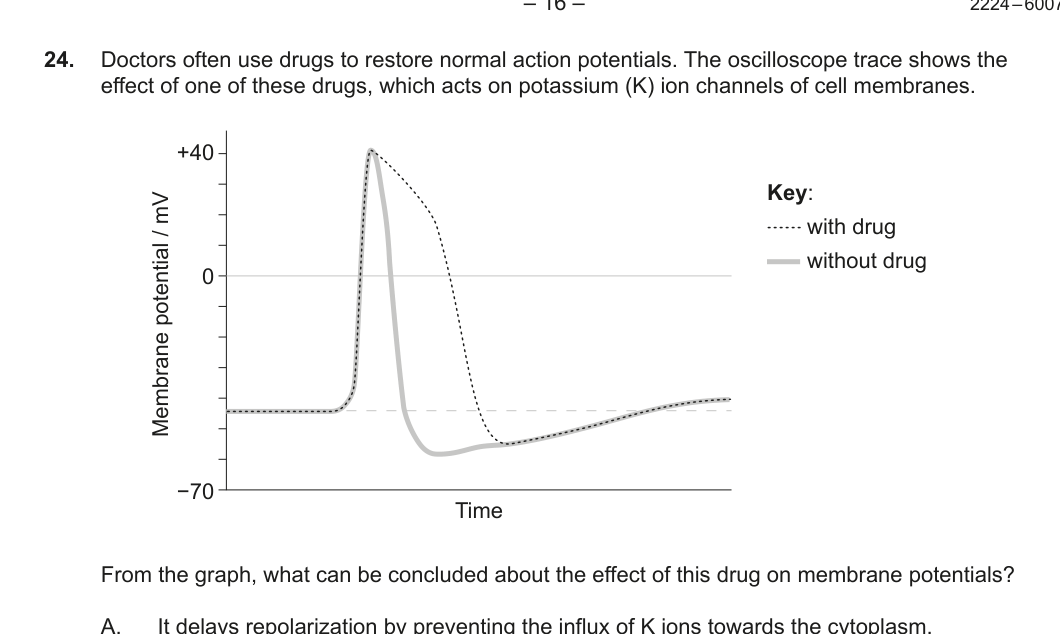

  1. Doctors often use drugs to restore normal action potentials. The oscilloscope trace shows the effect of one of these drugs, which acts on potassium (K) ion channels of cell membranes.

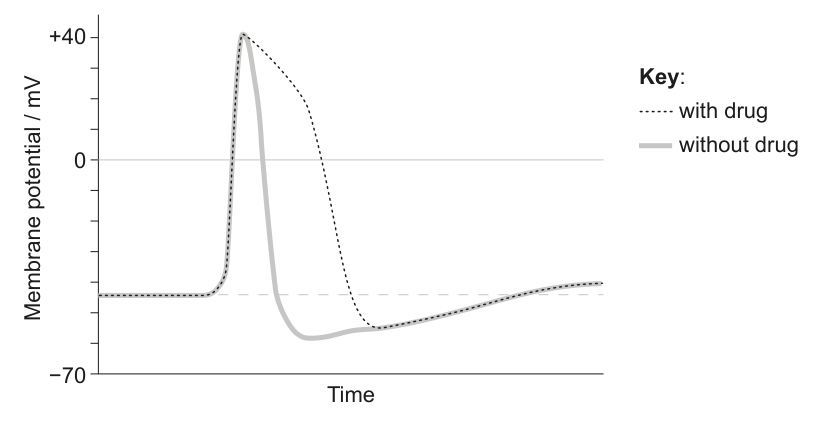

A line graph illustrating the change in membrane potential (mV) over time, comparing a 'with drug' condition (dotted line) and a 'without drug' condition (solid line). The graph shows an action potential, with the 'with drug' trace having a prolonged repolarization phase.
A line graph illustrating the change in membrane potential (mV) over time, comparing a 'with drug' condition (dotted line) and a 'without drug' condition (solid line). The graph shows an action potential, with the 'with drug' trace having a prolonged repolarization phase.

From the graph, what can be concluded about the effect of this drug on membrane potentials?
