Question 13

Biology SL Paper 3 (November 2024, TZ2)

Grade your answerAnswer this question in practice mode and submit it for feedback.Practice under timed constraintsOpen the paper flow with timed full-exam navigation.
View source PDF page 2

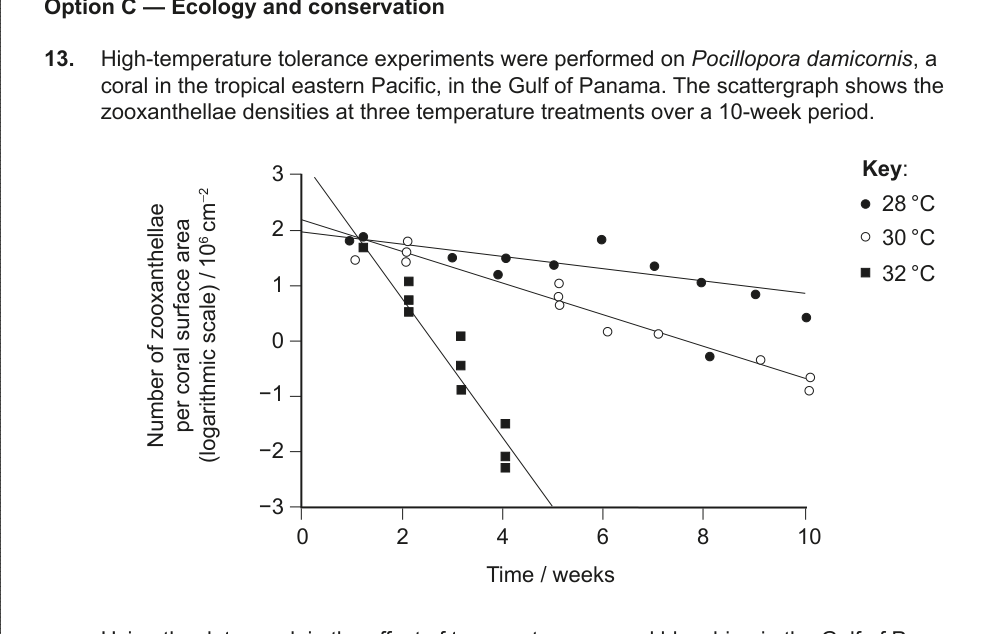

  1. High-temperature tolerance experiments were performed on Pocillopora damicornis, a coral in the tropical eastern Pacific, in the Gulf of Panama. The scattergraph shows the zooxanthellae densities at three temperature treatments over a 10-week period.

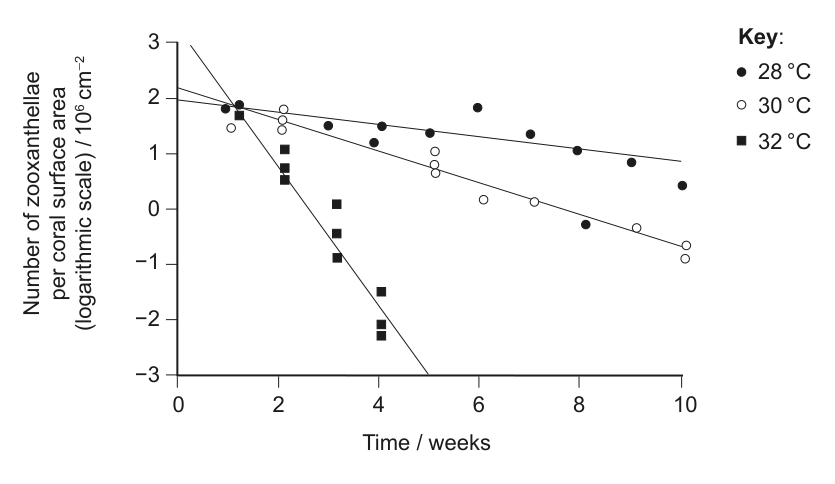

Scattergraph showing the number of zooxanthellae per coral surface area (logarithmic scale) over time (weeks) for three temperature treatments: 28 °C, 30 °C, and 32 °C.
Scattergraph showing the number of zooxanthellae per coral surface area (logarithmic scale) over time (weeks) for three temperature treatments: 28 °C, 30 °C, and 32 °C.

Using the data, explain the effect of temperature on coral bleaching in the Gulf of Panama. [2]
