Question 30

From Chemistry HL Paper 1 (May 2024, TZ2)

Grade your answerAnswer this question in practice mode and submit it for feedback.Practice under timed constraintsOpen the paper flow with timed full-exam navigation.
View source PDF page 3

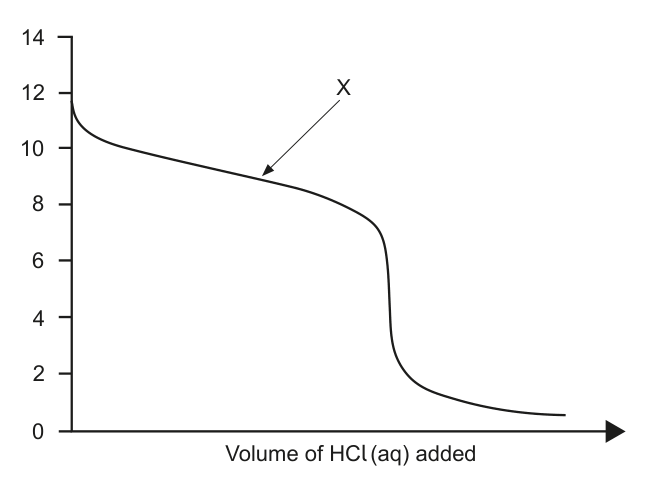

  1. The pH curve below is produced when aqueous ammonia is titrated with hydrochloric acid.
pH titration curve showing the titration of aqueous ammonia with hydrochloric acid, with a point X indicated on the curve.
pH titration curve showing the titration of aqueous ammonia with hydrochloric acid, with a point X indicated on the curve.

Besides water, which species are the major components of the reaction mixture at point X of the pH curve?
