- (a) With reference to Figure 6(b), state the ecological relationship between the Eurasian wolf (Canis lupus lupus) and the Eurasian lynx (Lynx lynx). [1]

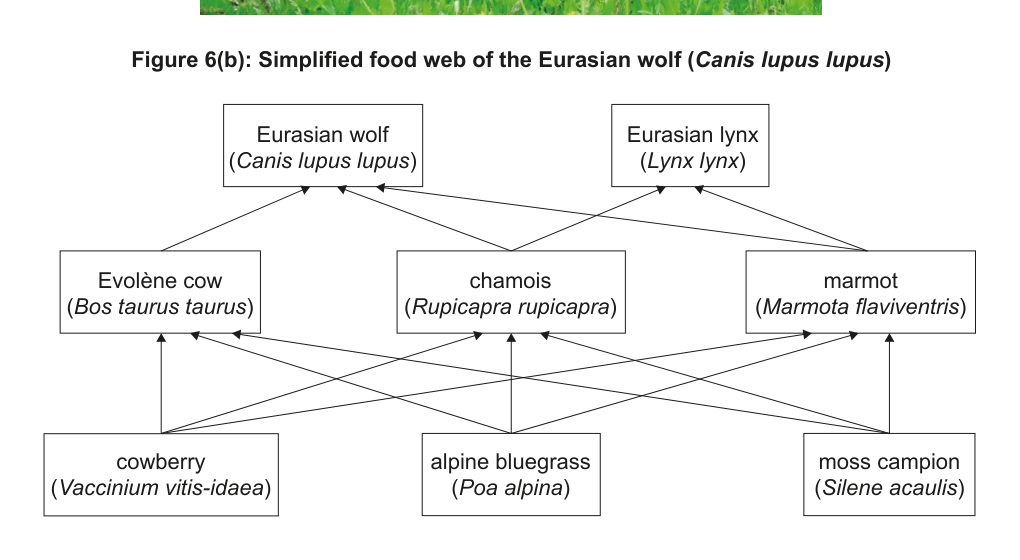

Figure 6(b)
(b) Predict how decreasing numbers of the Eurasian wolf (Canis lupus lupus) before 1979 could have impacted the alpine ecosystem. [2]
(c) With reference to Figures 6(c) and 6(d), evaluate the effectiveness of the protection given to the Eurasian wolf (Canis lupus lupus) in Switzerland. [3]

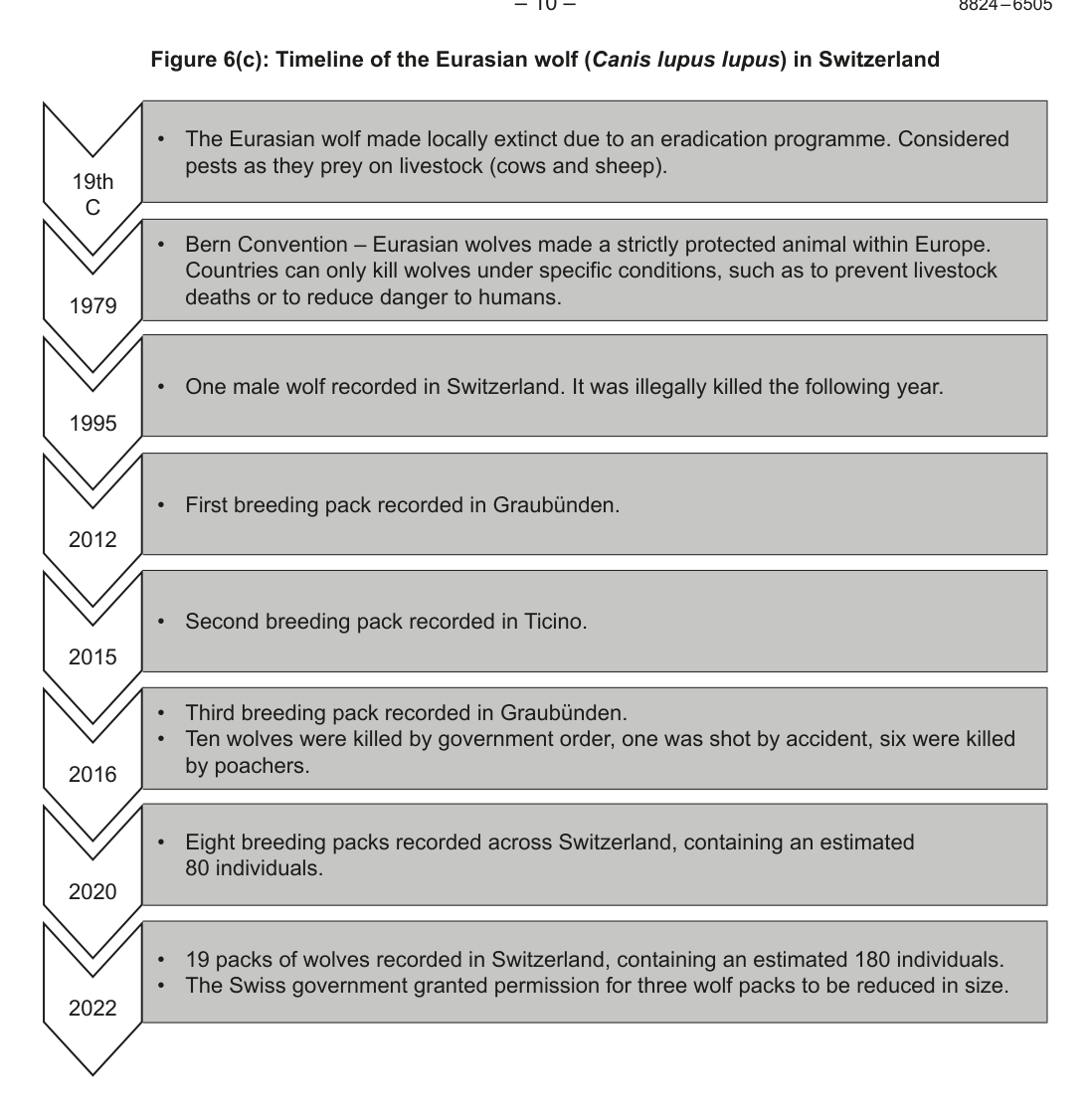

Figure 6(c)

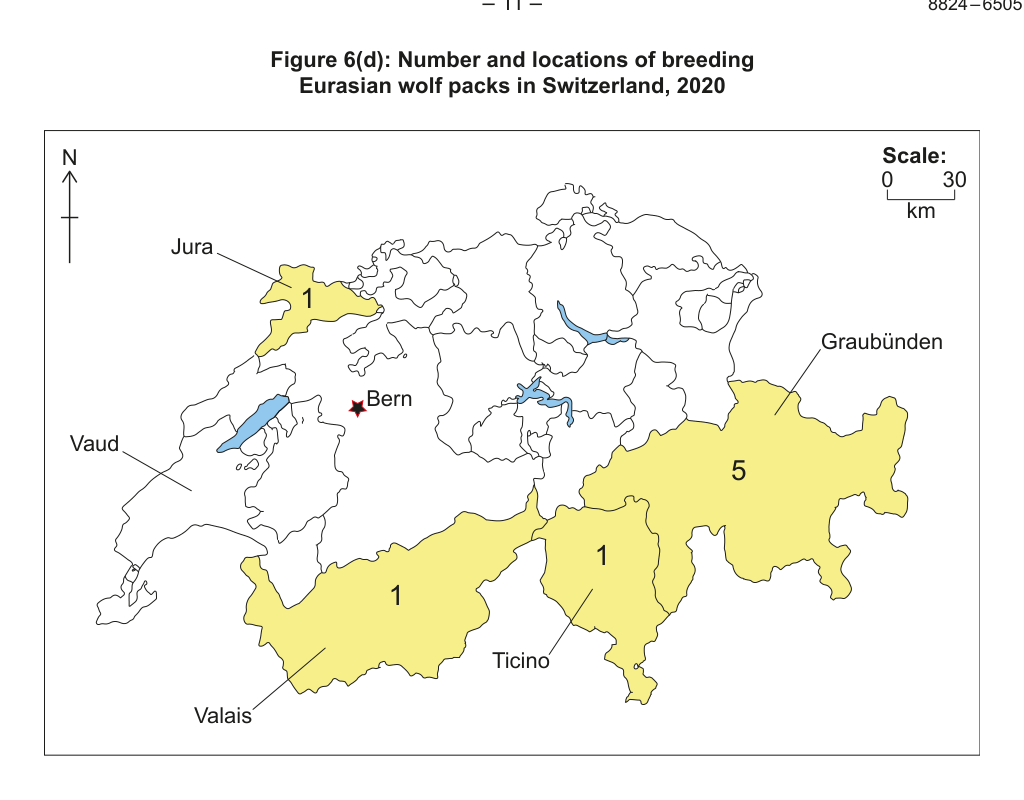

Figure 6(d)
