Math Analysis HL Paper 2 (May 2025, TZ2)

6. [Maximum mark: 6]

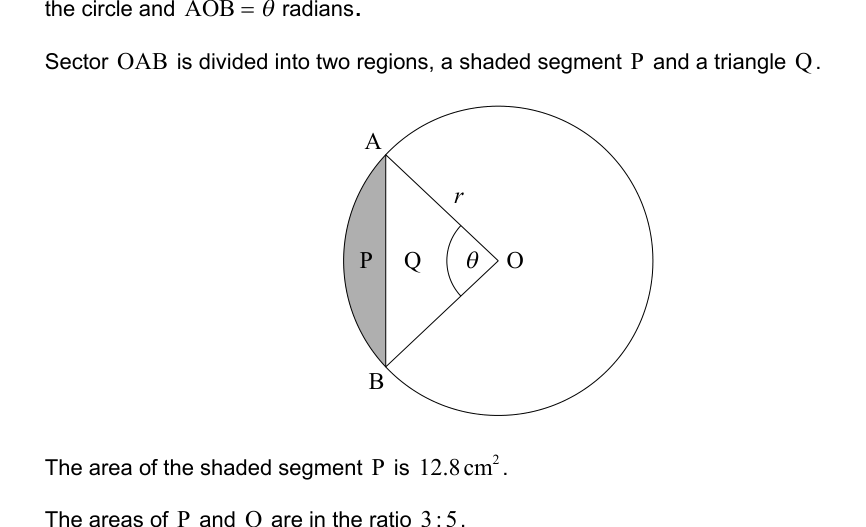

The following diagram shows a circle with centre O and radius rr cm. Points A and B lie on the circle and AO^B=θA\hat O B = \theta radians. Sector OAB is divided into two regions, a shaded segment P and a triangle Q. (Diagram shows a circle with sector OAB, segment P is the circular segment, triangle Q is OAB\triangle OAB).

Figure region page 8
Figure region from page 8

The area of the shaded segment P is 12.8 cm2^2.
The areas of P and Q are in the ratio 3:5.
Find the value of rr.
