Physics HL Paper 1 (May 2024, TZ2)

Open practice modeView source PDF page 10

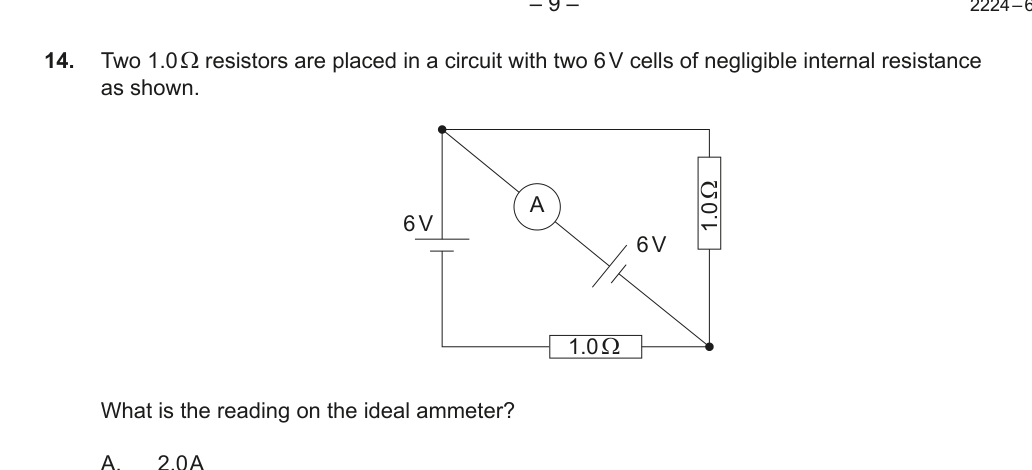

  1. Two 1.0 Ω resistors are placed in a circuit with two 6 V cells of negligible internal resistance as shown. [Figure shows a circuit with two 6 V cells, two 1.0 Ω resistors, and an ideal ammeter.]

What is the reading on the ideal ammeter?
