12

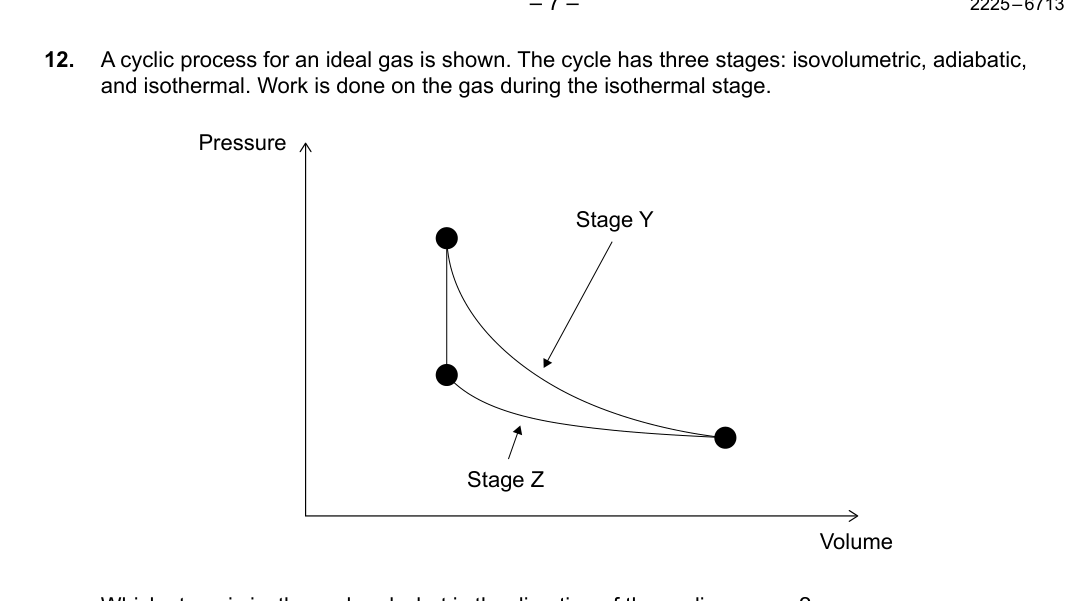

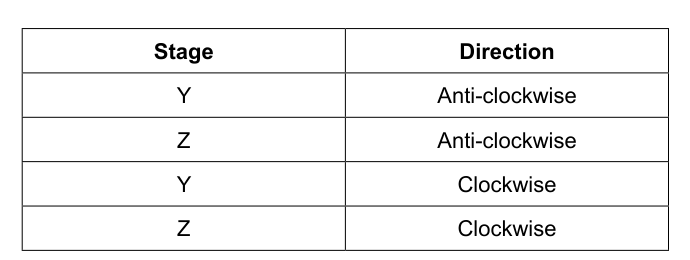

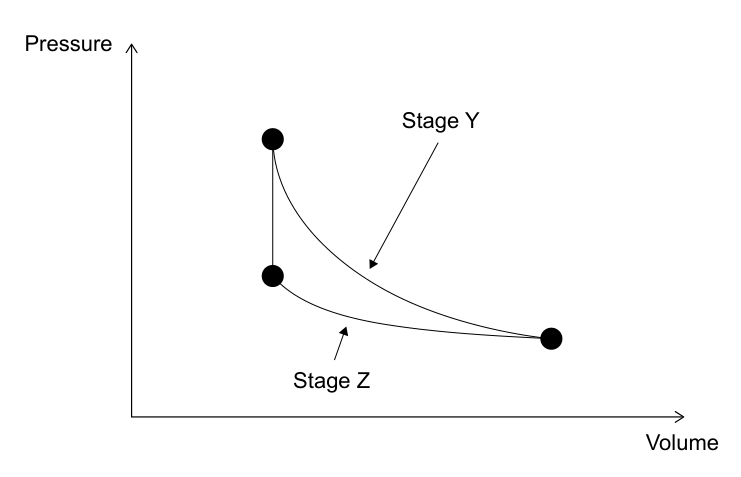

A cyclic process for an ideal gas is shown. The cycle has three stages: isovolumetric, adiabatic, and isothermal. Work is done on the gas during the isothermal stage. Which stage is isothermal and what is the direction of the cyclic process?
