17

Physics HL Paper 1A (May 2025, TZ2)

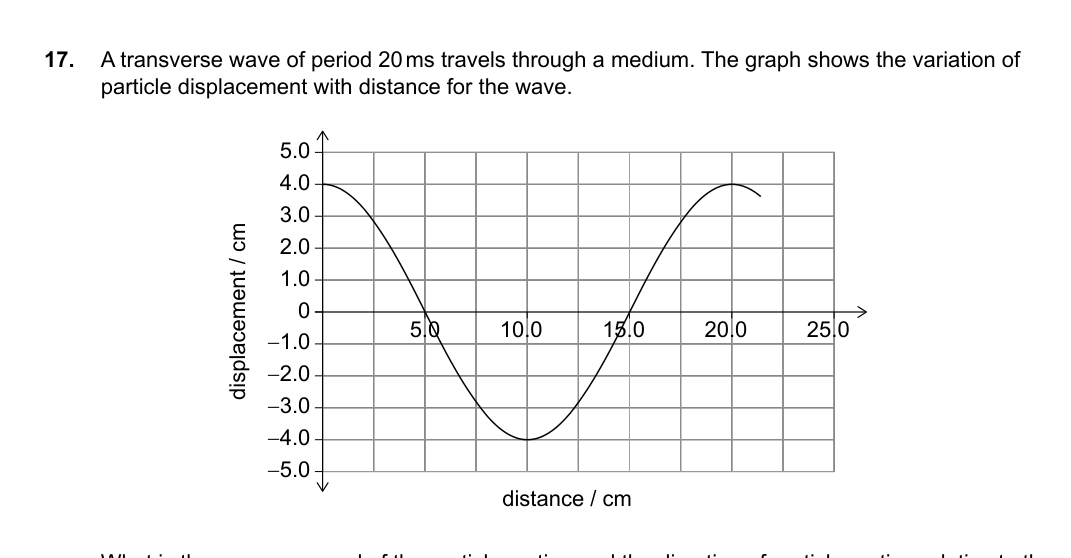

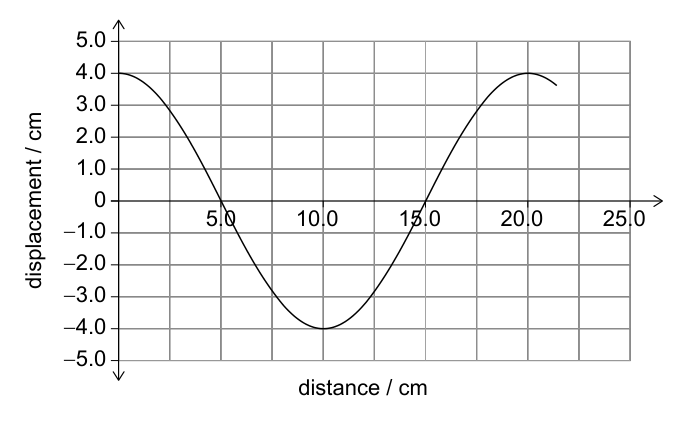

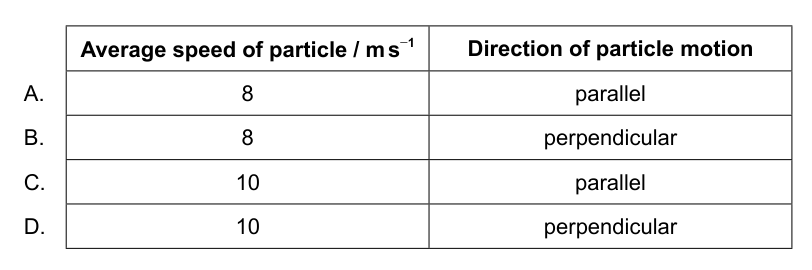

A transverse wave of period 20 ms travels through a medium. The graph shows the variation of particle displacement with distance for the wave. What is the average speed of the particle motion and the direction of particle motion relative to the direction of the wave travel during one cycle?

Figure region page 10
Figure region from page 10
